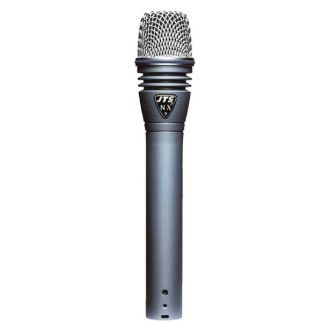

JTS NX-9 DYNAMIC MICROPHONE
Product code
KAG00606
| Model code: | MICROPHONES |
| Brand: | JTS |
The NX-9 offers extended frequency response and wider dynamic range. It offers smooth and transparent playback.
Type: Electret Condenser
Frequency Response: 60~18,000Hz
Polar pattern: cardioid, rotationally symmetrical around the microphone axis, uniform frequency
Sensitivity (at 1,000 Hz:) -70 dB * (0.32 mV) * 0 dB = 1 V / ?bar
Output impedance: 400?
Phasing: Positive pressure on the diaphragm produces a positive voltage on pin 2 relative to pin 3
Connector: Three-pin professional audio connection (male XLR type)
Case: die-cast metal body painted with metallic enamel with matt hardened steel grille
Net weight: 230 grams (8.1 ounces)
Touch Noise: Super low
Power: 9-52V phantom power or 1.5V AA battery
Type: Electret Condenser
Frequency Response: 60~18,000Hz
Polar pattern: cardioid, rotationally symmetrical around the microphone axis, uniform frequency
Sensitivity (at 1,000 Hz:) -70 dB * (0.32 mV) * 0 dB = 1 V / ?bar
Output impedance: 400?
Phasing: Positive pressure on the diaphragm produces a positive voltage on pin 2 relative to pin 3
Connector: Three-pin professional audio connection (male XLR type)
Case: die-cast metal body painted with metallic enamel with matt hardened steel grille
Net weight: 230 grams (8.1 ounces)
Touch Noise: Super low
Power: 9-52V phantom power or 1.5V AA battery
